Sample holders & handling

In addition to the standard stages delivered with each system,
we offer a range of specialized sample holders for our SAXS/WAXS instruments.

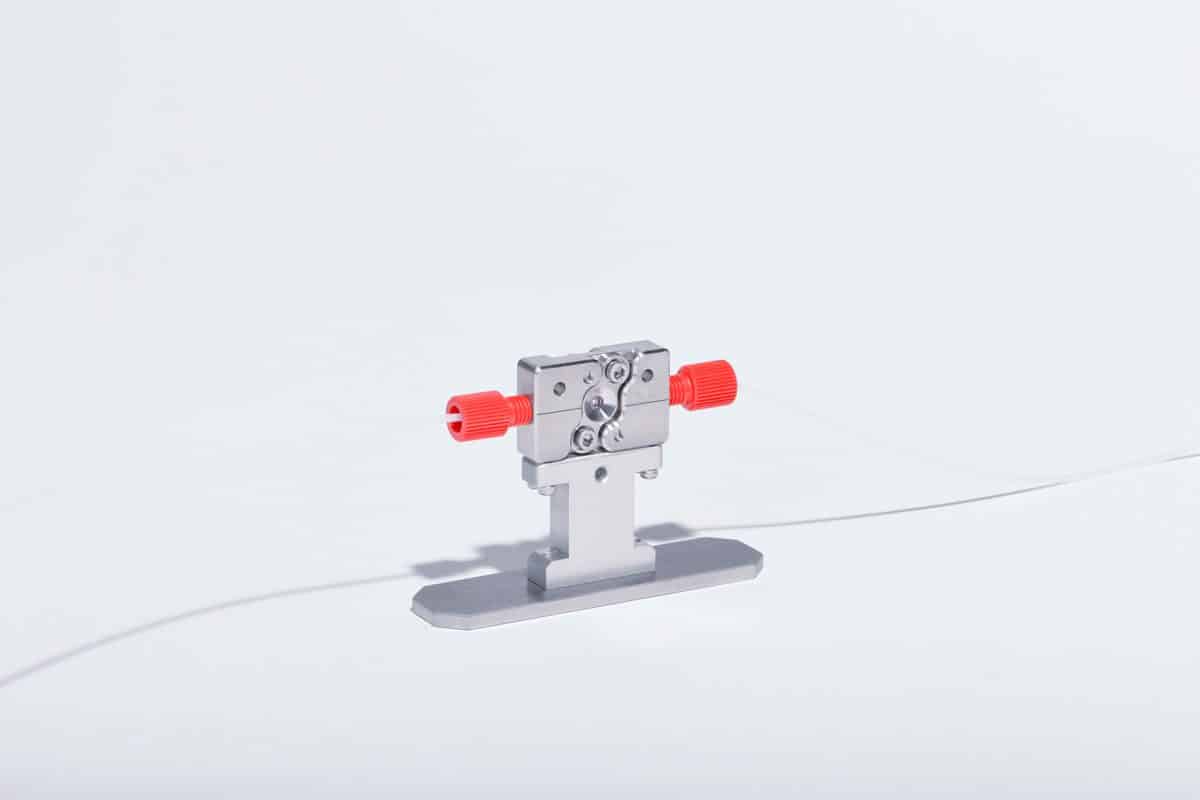

Low noise flow cell

For liquid samples, especially useful for dilute or low scattering samples.

See more

Description Vacuum compatible low scattering flow cell with feedthroughs to inject the liquid sample. Compatible with multipurpose temperature stage.
Instrument Nano-inXider, Xeuss
Note: Above photograph shows the Xeuss version of the sample holder.

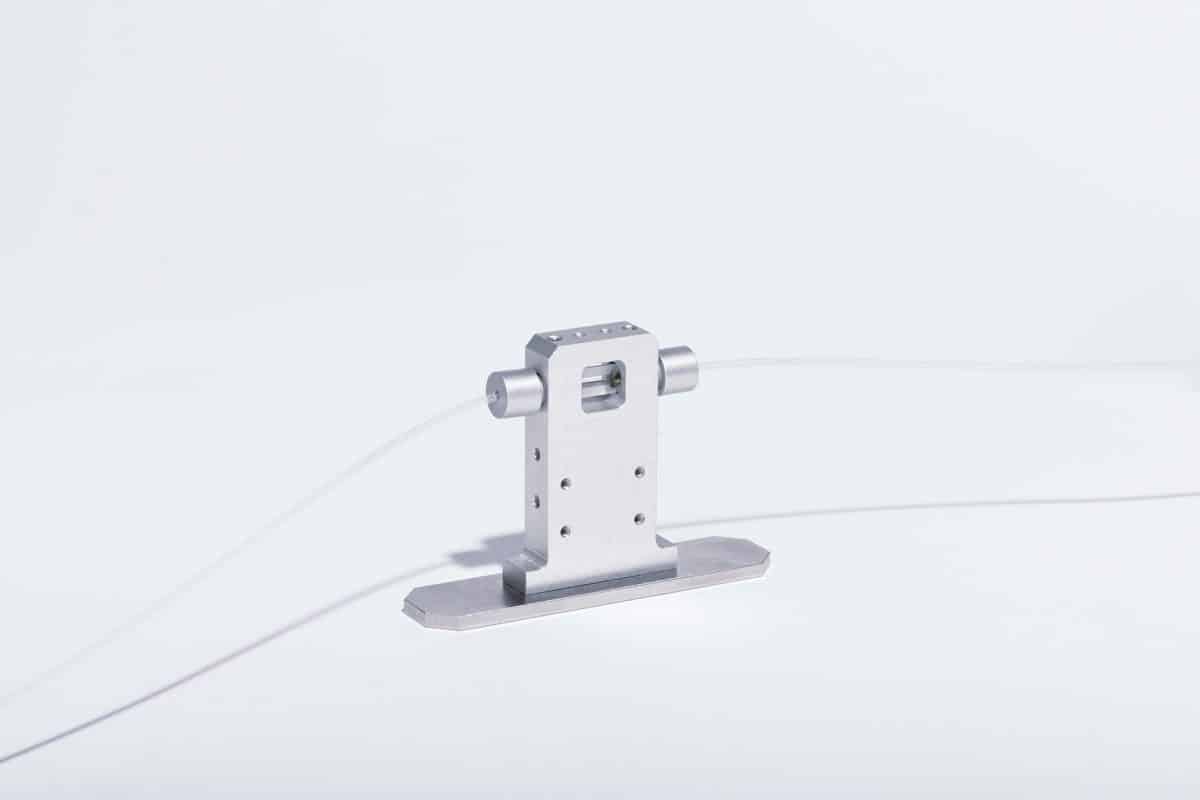

Capillary flow cell

For liquid samples.

See more

Description Vacuum compatible glass capillary flow cell with feedthroughs to inject the liquid sample.
Instrument Nano-inXider, Xeuss
Note: Above photograph shows the Xeuss version of the sample holder.

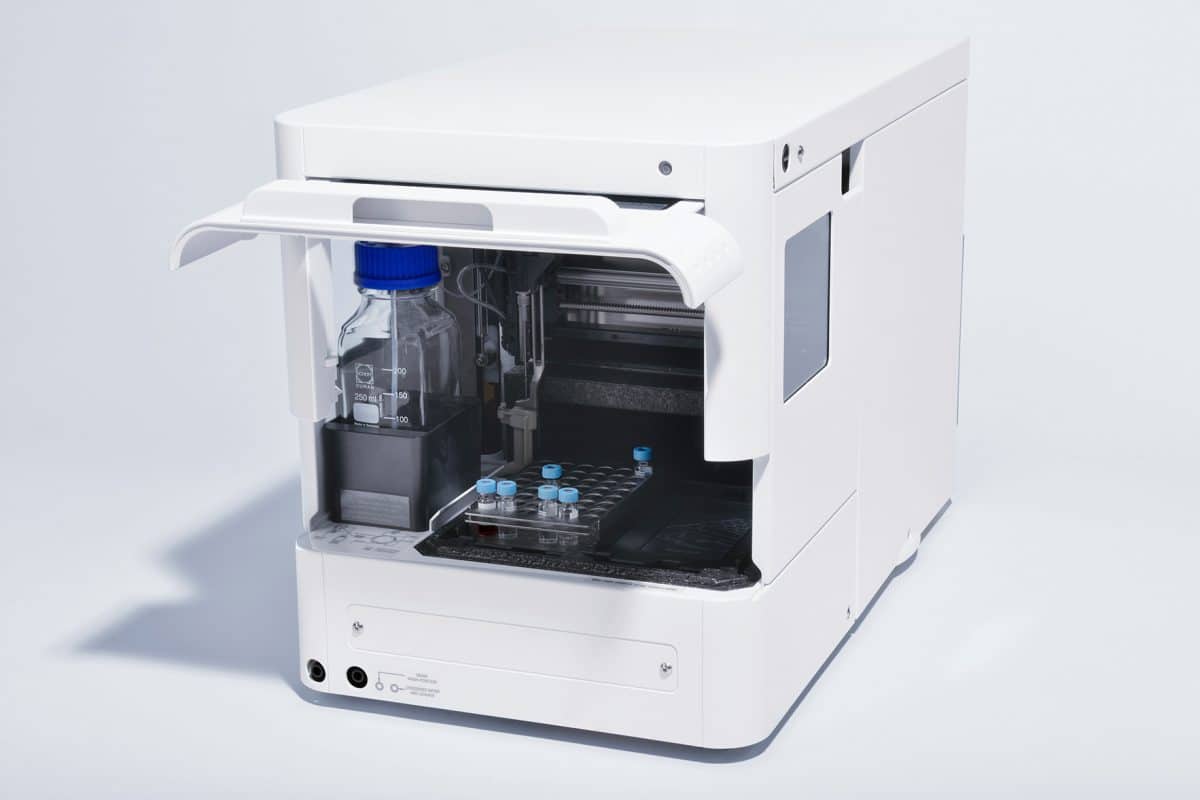

Autosampler for liquids

For automatic and high precision liquid sample injection in the flow cells (using tubing connections).

See more

Description Temperature controlled (4 to 40°C) sample changer with capacity of 2 x 48 or 2 x 96 vials. Can be used with the low noise flow cell and the capillary flow cell.
Instrument Nano-inXider, Xeuss

BioCube

Measurement cell for low sample volume solution scattering with machine vision assisted sample positioning.

See more

Description Optional UV-Vis. Compatible with SEC-SAXS and BioXolver pipetting robot. Temperature controlled.
Instrument BioXolver, Xeuss
Note: Above photograph shows the BioCube in use in the BioXolver instrument.

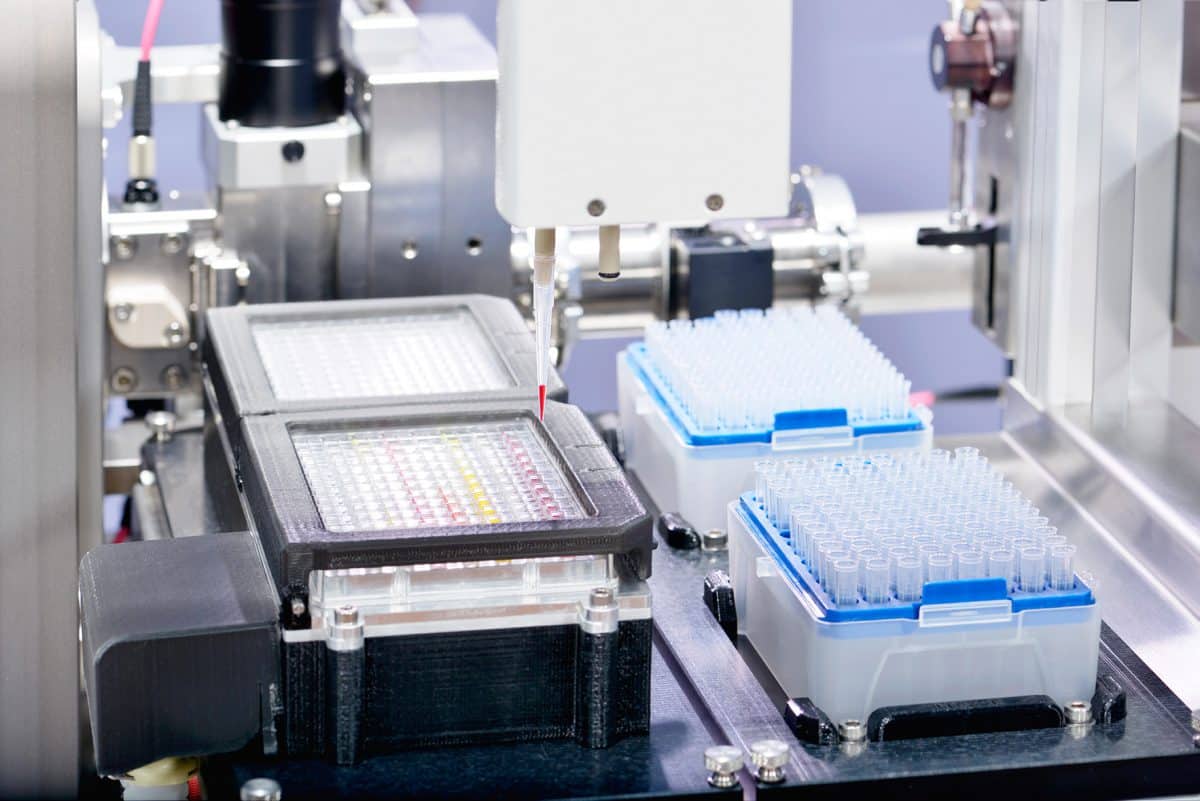

BioXolver pipetting robot

Robot for use with BioCube.

See more

Description 2x 96 (or 384) well trays with optional temperature control. Tubeless sample handling. No cross-contamination with disposable pipette tips. Full software integration.
Instrument BioXolver, Xeuss
Note: Above photograph shows the BioXolver pipetting robot in use in the BioXolver instrument.

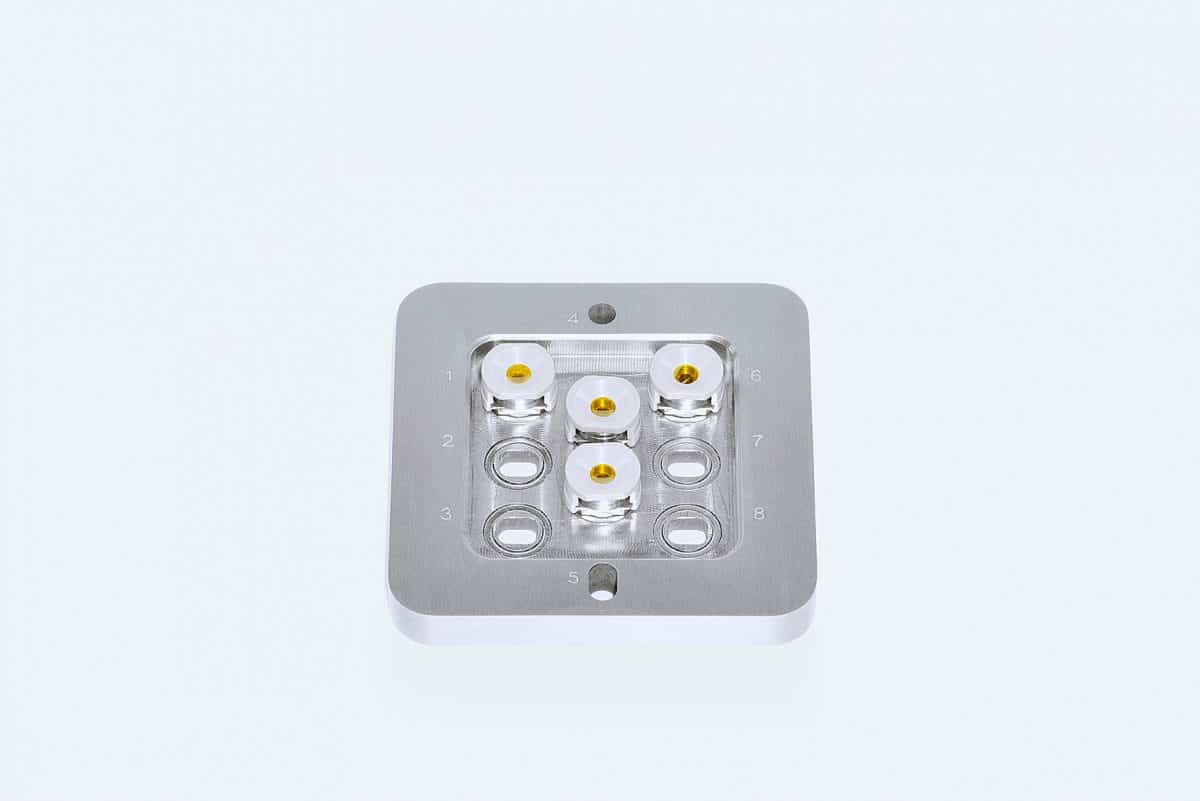

Gel and powder capsule holder

For powders and gels, also suitable for liquids.

See more

Description Rack of 8 cells mounted on magnets for easy positioning.
Instrument Xeuss, Nano-inXider
Note: Above photograph shows the Nano-inXider version of the sample holder.

GISAXS sample holder

For studying nanostructured surfaces and thin films.

See more

Description Sample stage designed to measure in grazing incidence geometry, offering multiple degrees of freedom for optimal sample alignment. Compatible with high temperature stage.
Instrument Nano-inXider, Xeuss
Note: Above photograph shows the Xeuss version of the standard sample holder.

Any other need?

More sample holders are available.
Do not hesitate to contact us, we are thrilled to discuss with you any specific need you may have.

Sample environments

Xenocs provides a wide choice of sample environments to study samples under non-ambient conditions.
These are available from us only as accessories to our SAXS/WAXS instruments.

Temperature

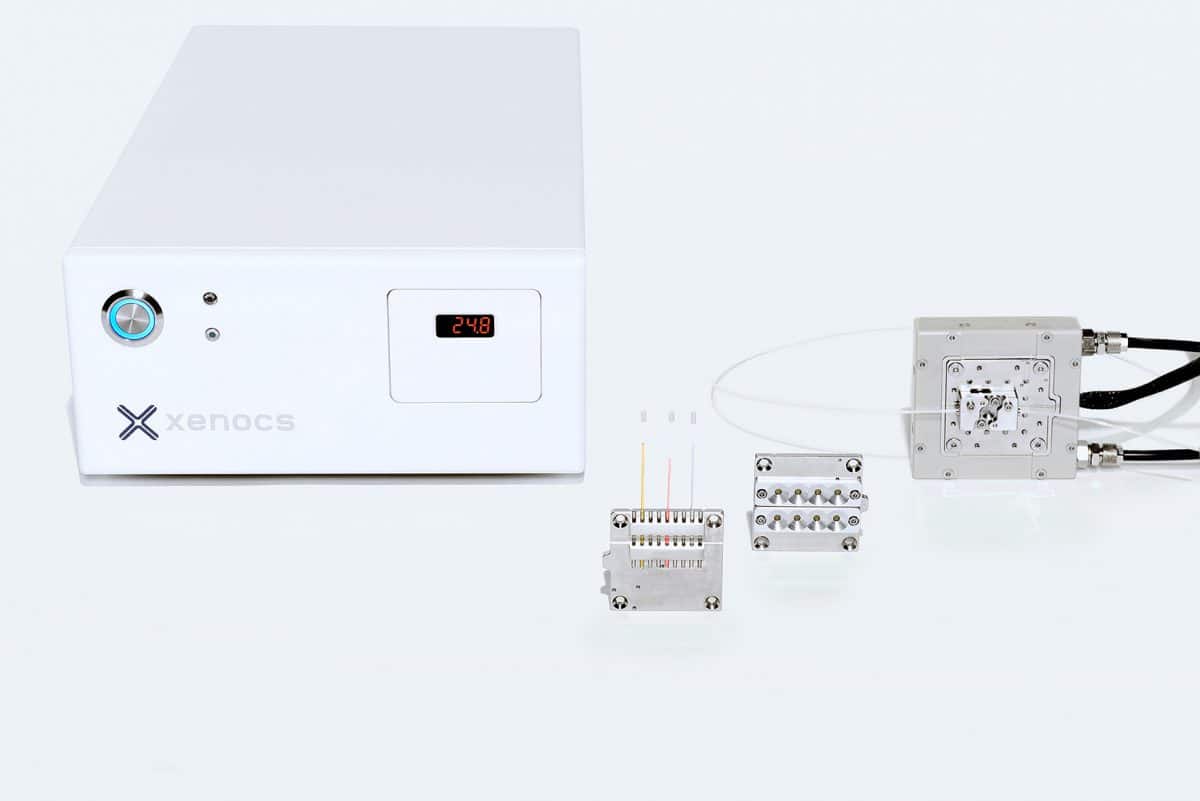

Multipurpose temperature stage

For temperature control of interchangeable multi-sample holders.

See more

Description Peltier type temperature stage with water cooling to control the temperature of several samples simultaneously.
Range -30 °C to 150 °C, limited to 4 °C to 50 °C for liquid samples.
Vacuum compatible Yes
Compatible samples Delivered with multi-sample holders for solids (16 positions), capillaries (9 positions), powders (16 positions). Compatible with low noise flow cell thermalization.
Instrument Nano-inXider, Xeuss

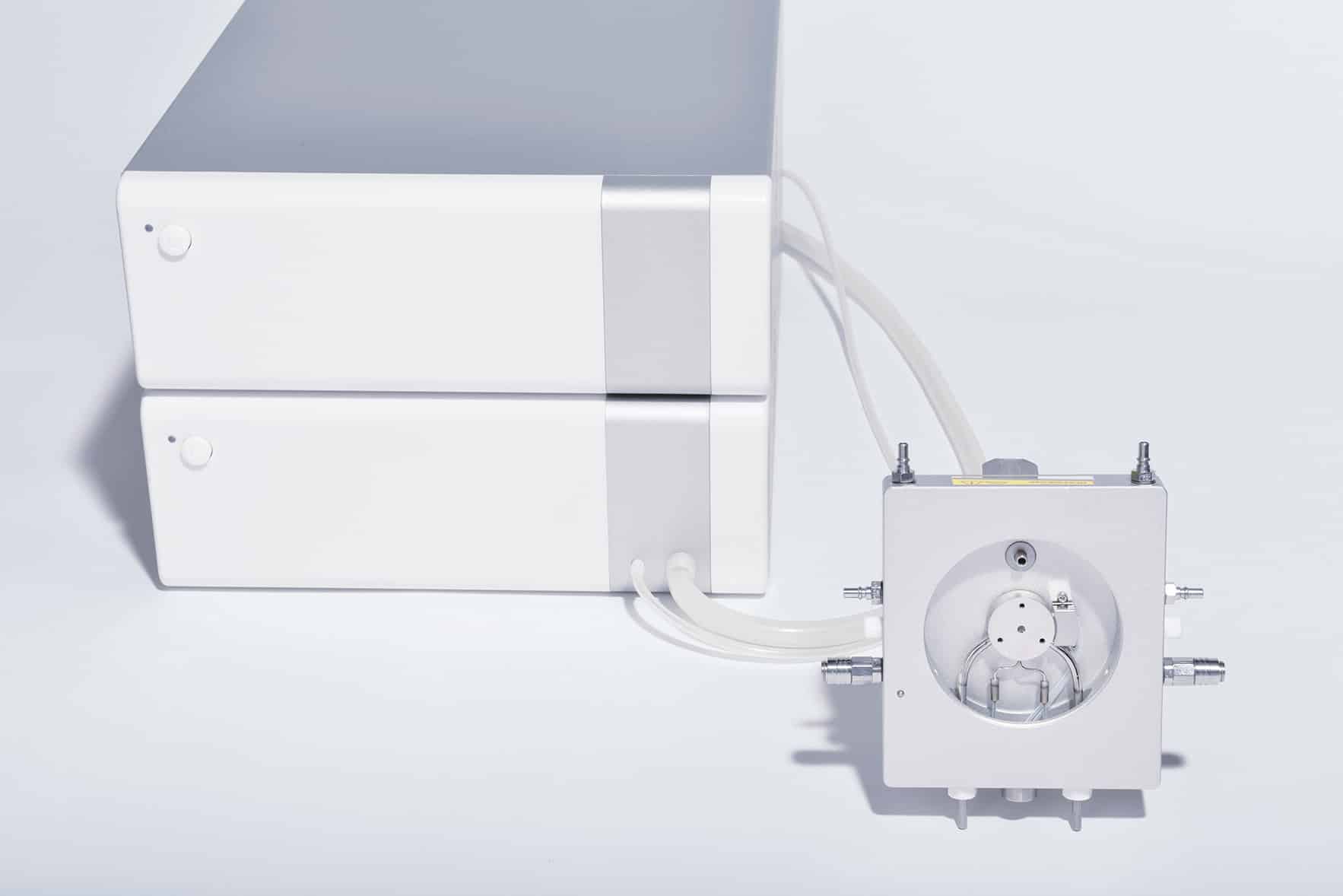

High temperature sample stage

For temperature dependent studies.

See more

Description Temperature stage. Liquid nitrogen required for cooling below ambient.
Range Operating temperature range: -150 °C to 350 °C
Vacuum compatible Yes
Compatible samples Solids, powders, gels,  liquids in capillaries. Compatible with GISAXS stages.
Instrument Nano-inXider, Xeuss

Extended high temperature stage

For temperature dependent studies on solids up to 1000°C.

See more

Description High temperature stage.
Range Operating temperature range: ambient to 1000 °C.
Vacuum compatible Yes
Compatible samples Solids
Instrument Nano-inXider, Xeuss

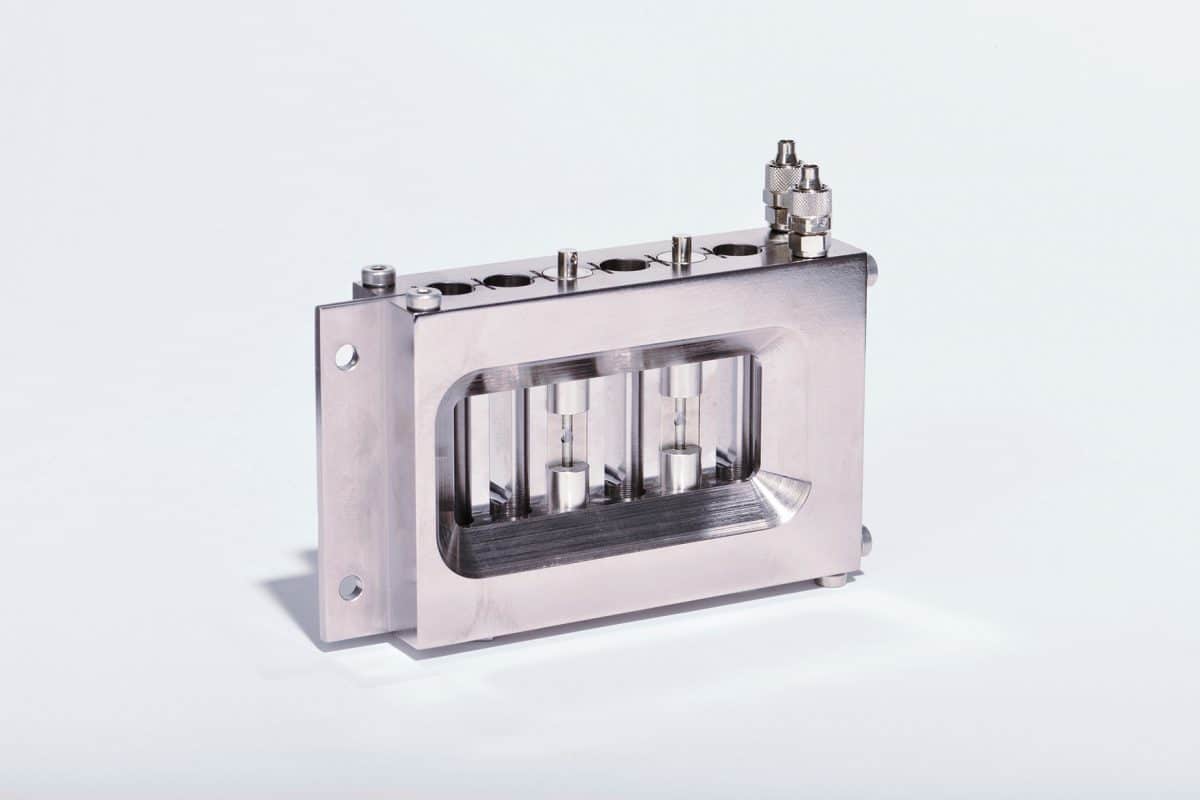

Multi refillable capillary holder with temperature control

For sample measurements where precise background subtraction is required.

See more

Description Temperature controlled stage allowing to mount up to 6 refillable capillaries. Since the capillaries are refillable, background measurement can be performed using the same capillary as for the sample measurement.
Range Operating temperature range: -10°C to 80°C, limited from 5°C to 70°C for aqueous samples.
Vacuum compatible Yes
Compatible samples Liquids, gels, powders
Instrument Nano-inXider, Xeuss

Tensile, Shear, Humidity

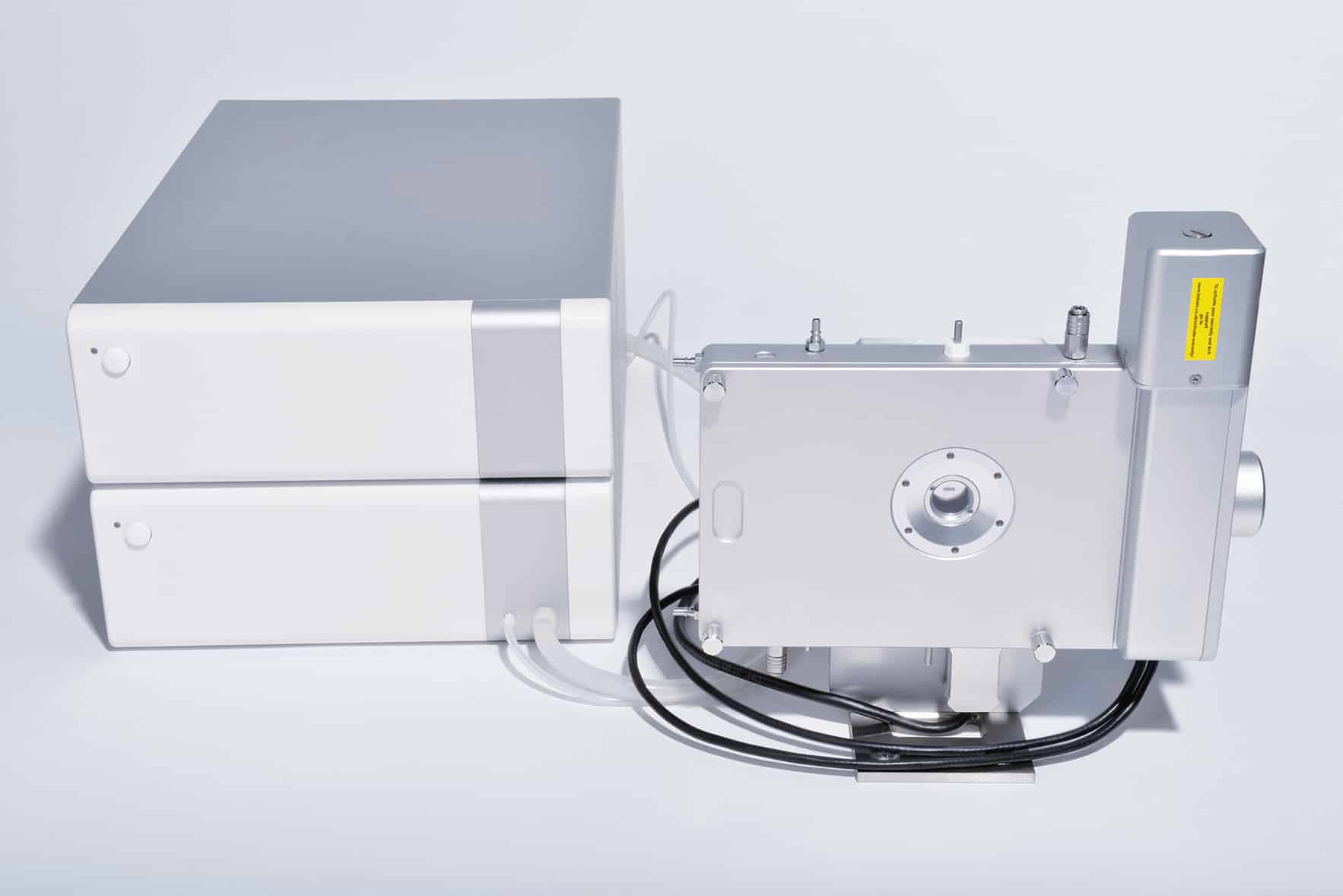

Tensile stage

For tensile stress and temperature dependent studies.

See more

Description Tensile stage.
Range Temperature: -150 °C to +250 °C.

Force: 0 – 200 N with 0.01 N resolution or 0 – 20 N with 0.001 N resolution.

Vacuum compatible Yes
Compatible samples Foils
Instrument Nano-inXider, Xeuss

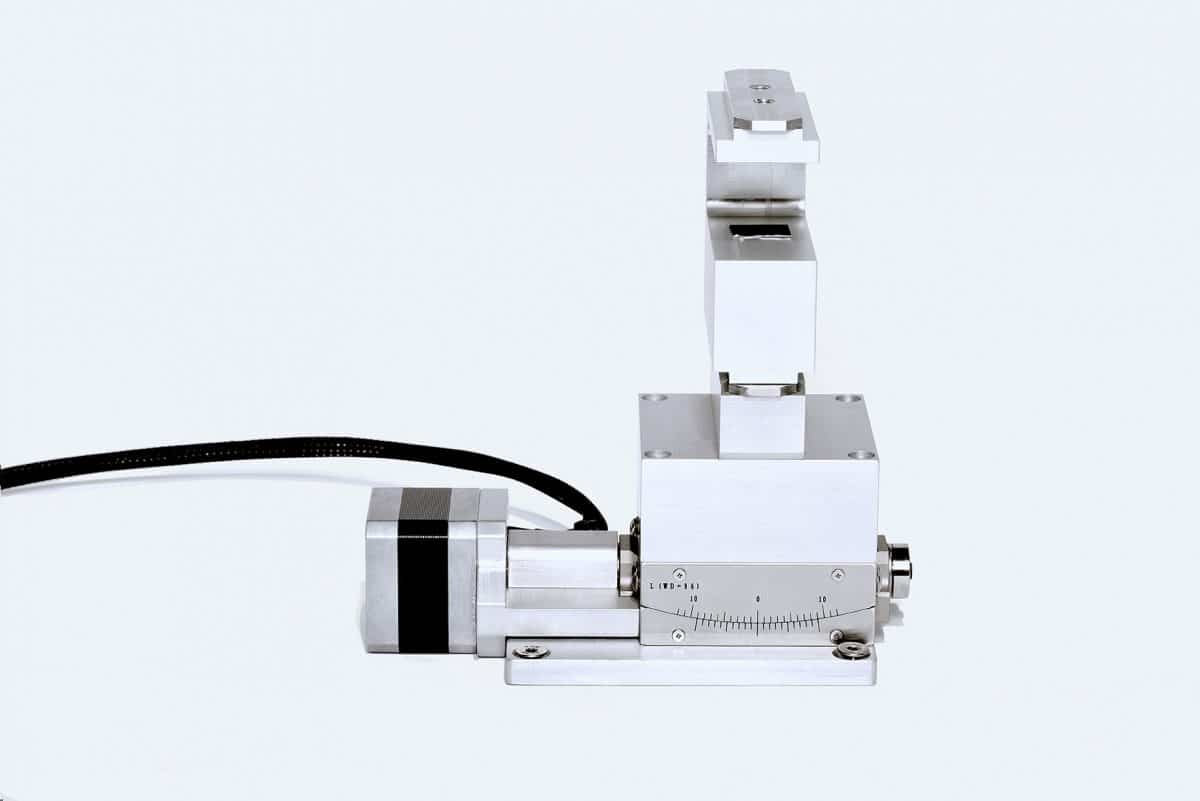

Xenocs Couette stage for shearSAXS

For structural studies of complex fluids under controlled shear.

See more

Description Integrated into the Xeuss 3.0 platform. Cylindrical Couette cell design with cylindrical rotor and stator made of low scattering polycarbonate material.
Range Typical temperature range : +10°C to +65°C
Typical shear rate : 0.2 s-1 to 1020 s-1
Vacuum compatible No
Compatible samples Polymers, suspensions (colloids, emulsions, pastes), liquids and gels
Instrument Xeuss 3.0

Plate-plate shear stage

For structural studies of viscous samples under controlled shear up to high temperatures.

See more

Description Integrated into the Xeuss platform. Provided with X-ray transparent windows for in-situ measurements of complex liquids under controlled shear (steady or oscillatory) and temperature.
Range Temperature range ambient to 180°C (optionally -50 to 180°C on Cryo CSS450 delivered with liquid nitrogen).
Vacuum compatible No
Compatible samples Polymers, suspensions (colloids, emulsions, pastes)
Instrument Xeuss

Humidity stage

For SAXS measurements of samples under controlled temperature/humidity conditions.

See more

Description Integrated relative humidity stage system.
Range Provides relative humidity control (in air only) in the range between 10 % and 90 % for temperatures from ambient to 60 °C.
Vacuum compatible No
Compatible samples Solids
Instrument Xeuss
