Protein Fibers Crystalline Structure Determined With WAXS

Silks are well known natural protein fibers, spun by spiders, silkworms and other insects, that have been used for centuries in the textile industry due to their high strength and toughness. In particular, the silk of the domestic silk moth Bombyx mori (B. mori) has been intensively studied for its potential applicability as a biomedical material [1, 2]. Silk contains two proteinous polymers [3] (shown in Fig. 1):

Fibroin: composed a of hydrophobic heavy chain (FibH) and hydrophilic light chain (FibL). The dominant FibH itself consists of large repetitive units of alanine (ALA) and glycine (GLY) that fold into antiparallel – sheet crystalline structures which in turn are organized in a hydrophilic amorphous matrix formed by FibL.
Sericin: an antigenic gum-like hydrophilic protein, forming the outer coating that keeps the fibroin fibrils together.

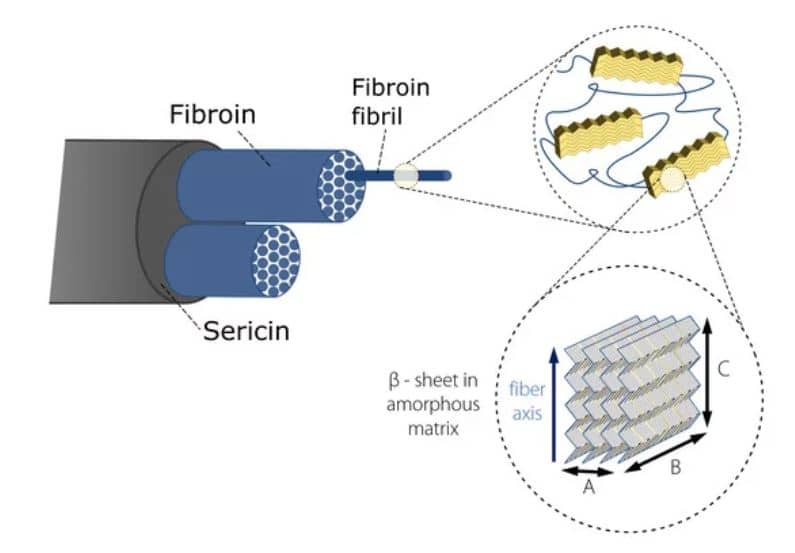

Figure 1. Hierarchical structure of Bombyx Mori silk (representation inspired by [3, 4]).

References:

[1] E.-O. Oduor, L.-W. Ciera, and E. Kamalha. “Applications of Silk in Biomedical and Healthcare Textiles.” Textiles for Functional Applications 75. (2021) DOI: 10.5772/intechopen.96644

[2] C. Sobajo, F. Behzad, X.-F. Yuan, and A. Bayat “Silk: a potential medium for tissue engineering.” Eplasty 8. Eplasty. 2008;8:e47. (2008) PMID: 18997857.

[3] N. Du, X.-Y. Liu, J. Narayanan, L. Li, M.-L.-M. Lim, and D. Li, “Design of superior spider silk: from nanostructure to mechanical properties”. Biophysical journal, 91. (2006) DOI: 10.1529/biophysj.106.089144

[4] N. Du, Z. Yang, X.-Y. Liu, Y. Li, and H.-Y. Xu, “Structural origin of the strain‐hardening of spider silk”. Advanced Functional Materials, 21. (2011) DOI: 10.1016/j.molp.2026.01.007
