Xeuss Pro

The Ultimate Solution for Nanoscale Characterization using SAXS/WAXS/GISAXS/USAXS/Imaging

Discover more

Webinar

Laboratory SAXS and GISAXS as a metrology tool for microelectronics applications

Access the recording

Our team

Experienced and enthusiastic, our team of experts is here for you.

About us

Serving our customers worldwide

Our strong network of subsidiaries and agents worldwide ensures local support and close contact to our customers.

Your access to the nanoscale

At Xenocs, we help our customers in their research, development and production of advanced materials by providing them with products and services for characterization at the nanoscale. Our solutions are based on Small and Wide Angle X-ray Scattering (SAXS/WAXS) and are used in a wide range of research applications.

Polymer research

Food science

Nanoparticles & colloids

Consumer care

Renewable energy

More applications

Visit our blog on SAXS for drug development

News

SXNS17

[email protected] | Events | No Comments

15-18 July, 2024 Xenocs is pleased to attend the 17th International Conference on Surface X-ray and Neutron Scattering (SXNS17) from July 15-18 in Grenoble, France. Meet us at our booth!

ACA 2024

[email protected] | Events | No Comments

7-12 July, 2024 Xenocs is pleased to attend the American Crystallographic Association's 74th Annual Meeting from July 7-12 in Denver, Colorado, USA. Meet us at booth 511 in the exhibitor hall.

IUPAC MACRO 2024

[email protected] | Events | No Comments

1-5 July, 2024. Xenocs is pleased to attend the 50th World Polymer Congress (IUPAC MACRO 2024) from July 1-5 in Warwick University, United Kingdom. Meet us at our booth!

Customer testimonials

Queen Mary University Enhances Materials Analysis with the Nano-inXider SAXS/WAXS Equipment

[email protected] | Testimonials, Type of articles | No Comments

“The acquisition of the Xenocs Nano-inXider fills a missing gap in quantitative characterisation between the molecular and microscopic scale, and will enhance our ability to address new scientific questions”. Dr. Richard Whiteley

Xeuss SAXS/WAXS instrument at AIST – a strategic tool for acquiring structural information at multiple length scale to overcome social challenges and improve industrial competitiveness

Marie | Testimonials | No Comments

“We use the Xeuss even before going to a synchrotron. Having prior knowledge on the samples using the Xeuss instrument saves us time and money”, Dr Sakakibara, AIST

SAXS instrument Helmholtz-Zentrum Hereon

Helmholtz-Zentrum Hereon uses the Xeuss 3.0 SAXS/WAXS instrument to boost research

Marie | Testimonials, Type of articles | No Comments

"Even after more than a year, we still did not explore all possibilities our Xeuss provides. Until now, the device fulfils and even exceeds all expectations we had", Dr Jürgen Markmann, Helmholtz-Zentrum Hereon.

Some of our customers

2500

Customers publications in the last 5 years

200

X-ray scattering instruments installed since 2012

At Xenocs, we help our customers in their research, development and production of advanced materials by providing them with products and services for characterization at the nanoscale. Our solutions are based on Small and Wide Angle X-ray Scattering (SAXS/WAXS).

For more information on the SAXS/WAXS technique, have a look at our SAXS webpage.

With the Application menu, you will find plenty of information on what modern SAXS is being used for in various research domains such as polymer research, structural biology, nanoparticles & colloids, renewable energy, food science, cosmetics & consumer care, oil & gas, as well as various inorganic materials.

The characterization pages will give you some examples of the types of measurements you can perform in the lab with X-ray scattering.

For detailed descriptions on our portfolio of SAXS/WAXS instrumentation, please refer to our product webpages.

The knowledge base menu gives you access to some application notes and a large list of customer publications involving our lab instruments.

Choose where to start your journey:

What is SAXS

Applications

Products

Characterization

If you have any questions on what is possible to do with SAXS and on our solutions, do not hesitate to contact us at [email protected].

SAXS WAXS

SAXS WAXS – Xenocs, Your Access To The Nanoscale In The Lab

Xenocs, Your Access To The Nanoscale In The Lab. Optimize Your Materials Properties With Fast Nanostructure Answers.



Source	Microfocus sealed tube: Cu, 30W/30µm, point focus. ( DIN EN 12543-5) Polychromatic Copper microfocus source for imaging a field of view of 14 mm x 14 mm. MetalJet D2+ 70 kV source (Ga). Motorized Dual or Triple source (Cu/Mo/Cr/Ga).
Optics	Patented 3D single reflection multilayer optics.
Detector	In-vacuum motorized 3-axis detectors for 2D SAXS/WAXS (Q-Xoom): --Eiger2 R (500K, 1M or 4M) hybrid photon counting detectors Optional WAXS detectors for SWAXS: --Motorized 3-axis Eiger2 R 500K hybrid photon counting detector
Sample chamber	Large vacuum chamber. On-axis sample viewing (parallax free). Attachments for operation of sample in air. XL station: Dedicated air-space tailored for accommodating extra-large sample environments
Key features	Clean Beam technology: High flux and low background beamline. Beamstopless measurement: SAXS acquisition continuously without any beamstop. Q-Xoom: Automatic change of measurement configuration over all instrument Q-range with no movement of sample measuring position and automatic callibations. Virtual detector mode: Surfaces of detection > 200 mm x 200 mm.
Measurement capability	Nanoparticles size up to 250 nm, 500 nm or 900 nm in diameter depending on the Xeuss model. Nanoparticles size up to > 2.5 microns with optional motorized Bonse-Hart module for automatic sequential USAXS/SAXS/WAXS measurements. Nanoparticles sizes down to 50 nm can be measured using the AuX source on spot sizes of 150 microns and with measuring times in the range of a minute or less. Scattering measurements up to 2Ɵ > 70° with Q-Xoom. Qmax > 49 nm-1 The X-ray imaging option extends the range of structural information from Å to mm while the Dark-field and Phase-contrast imaging (DF-PCI) option reveals nanostructure differences, interfaces and orientation.

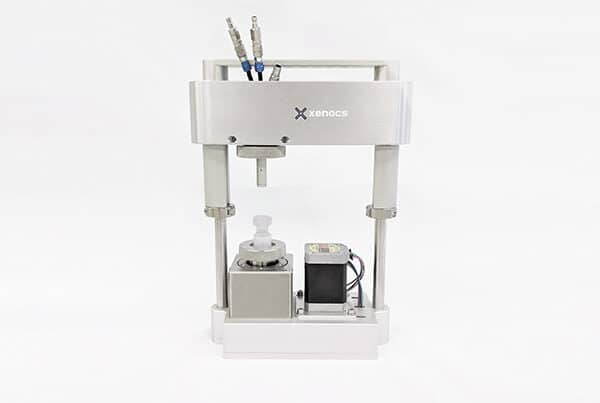

Sample environment	Standard holders (multi-samples): solids, capillaries, powders and gels. Flowcells for liquids: --- Low noise flowcell --- Capillary flowcell --- Automatic Sample Changer --- BioCube measuring cell with dynamic monitoring (compatible with pipetting robot) Temperature stages: --- Multi-purpose X-Ray temperature stage (-30°C to 150°C) --- High temperature sample stage (-150°C to 350°C) --- Extended high-temperature sample stage (ambient to 1000°C) Mechanical stress stages: --- Tensile Stage (0 N to 600N). --- Couette stage for shear SAXS. --- Cryo-Shear Cell (-50°C to +450°C). Humidity stage (5% to 95% humidity at temperatures ranging from 10°C to 70°C). Temperature compatible advanced GISAXS stage with incidence angle control and additional rotation for texture or in-plane scattering analysis Other sample stages available under request
Software	Comprehensive Software Suite: Xplore: command and control software for intuitive data acquisition with automatic data reduction in absolute units and live data display providing also real-time equipment monitoring and scripting capabilities from any programming language. XSACT Pro (X-ray Scattering Analysis and Calculation Tool) for data analysis and interpretation including unique modules for particle shape determination through direct modeling or AI-powered classification.
General parameters	Models & Footprint: Xeuss Pro C (1 m x 3.5 m), HR (1 m x 5 m), UHR (1 m x 8 m). Maximum power consumption: 4.8kW (single phase power)


Mirror type	Figure	Optic efficiency (calculated over mirror length for 70µm source)
Standard Montel mirrors		Eff = 42%
Xenocs FOX 3D mirrors		Eff = 62%


Model	Beam size at focus (mm) with 60 µm source	Divergence (mrad)	Typical application
FOX 3D Cu 14-39 (♦)	0.19 x 0.19	5.4	Protein crystallography (♦) Powder diffraction
FOX 3D Cu 12-53	0.3 x 0.3	3	Protein crystallography (Long Unit Cells) Powder diffraction
FOX 3D Mo 10-31	0.13 x 0.13	4	Small molecule crystallography High pressure diffraction
FOX 3D Ag 10-30	0.13 x 0.13	3	Small molecule crystallography High pressure diffraction
FOX 3D Cr 8-30	0.20 x 0.20	6	Protein crystallography (S-SAD) Stress analysis
FOX 1D Cu 12-53	0.3	3	XRD, Powder Diffraction


Model	Beam size at focus (mm) with 60 µm source	Divergence (mrad)	Typical application
FOX 2D Mo 25-25 (♦)	0.08 x 0.08	5	Small mollecule crystallography High pressure crystallography
FOX 2D Cu 25-25 (♦)	0.08 x 0.08	5.3	Protein crystallography (♦) Micro Diffraction, Reflectometry
FOX 3D Cu 21-21 HC (♦)	0.08 x 0.08	70 x 35	Rapid x-ray Reflectometry (full beam) Scanning x-ray Reflectometry (with slit) Micro-XRF
FOX 3D Cu 28-10	0.04 x 0.04	17	Stress Analysis, Micro-diffraction, Micro-XRF
FOX 3D Cr 30-8	0.04 x 0.04	17	Stress Analysis, Micro-diffraction, Micro-XRF


Model	Beam size at focus (mm) with 60 µm source	Divergence (mrad)	Typical application
FOX 2D Cu 12-INF (♦)	1.2 x 1.2	1	Small angle x-ray scattering (♦) High resolution x-ray diffraction (♦) Surface scattering (♦) Thin film analysis (reflectometry stress) (♦) Microdiffraction on synchrotron (♦)
FOX 2D Mo 25-INF (♦)	0.85 x 1.3	0.5	Small angle x-ray scattering High resolution x-ray diffraction Surface scattering
FOX 2D 12-60 L (♦)	0.18 x 0.2	0.5 x 2	High resolution diffraction Small sample analysis
FOX 1D Cu 12-INF (♦)	1.2	0.8	High resolution x-ray diffraction, Powder diffraction, Reflectometry, Small angle x-ray scattering


Model	Beam size at focus (µm)	Divergence (mrad)	Flux (ph/sec)	Typical application
GeniX 3D Cu High Flux *	< 190	6	> 400 x 10⁶	Protein crystallography Micro stress analysis Powder diffraction
GeniX 3D Mo High Flux	< 130	5	> 25 x 10⁶	Small Molecule crystallography High pressure
GeniX 3D Cr High Flux	< 190	6	> 300 x 10⁶	Stress Analysis
GeniX 3D Cu High Convergence *	60	70 x 35	> 400 x 10⁶	Rapid X-ray Reflectometry (full beam) Scanning x-ray reflectometry (with slit) Micro x-ray fluorescence Small spot diffraction on thin film
GeniX 3D Cu Low Convergence *	< 250	3	> 120 x 10⁶	Small Angle X-ray Scattering Protein Crystallography


Model	Detailed specifications
Synchrotron scatterless slits (♦)	Please contact us for any technical information Discover what our customers say about it!
X-ray alignment camera (♦)	Please contact us for any technical information
Pin Diode detector (♦)	Please contact us for any technical information
Beam stop with integrated Pin Diode	Please contact us for any technical information


BioXolver configurations	BioXolver	BioXolver L
Utilisation	Research on biological macro-molecules in solution	Research on biological macro-molecules, including large complexes and interactions
X-ray source	Microfocus GeniX 3D, MetalJet, add-on to RAG	0.02-0.3nm
Optic	Aspheric single reflection multilayer optic
Collimation	Motorized scatterless point collimation	variable
Sample cell	Xenocs thermalized BioCube flow-cell with camera and pump
Sample handling	Pipetting robot with disposable tips
Sample capacity	Up to 2 x 96 well plates (thermalized)
Minimum sample volume	Down to 5 μL
Cleaning	Automated cleaning and drying with three cleaning fluids
Detector	Dectris in-vacuum hybrid pixel photon counting detector
Detector configuration	Fixed detector distance	Variable detector distance
Data reduction and analysis software	RAW and ATSAS
Q-range and typical protein size*	0.006 Å-1 / MW < 200 MDa / Rg < 135 Å	0.003 Å-1 / MW < 1.5 GDa / Rg < 270 Å
Overall length	3.2 m (2.7 m as add-on to existing source)	4.2 m
Options	UV-Vis, separate temperature control for sample trays and BioCube	UV-Vis, separate temperature control for sample trays and BioCube
Services	Installation, training, hot-line, maintenance contract	Installation, training, hot-line, maintenance contract



Source and optics	Microfocus sealed tube: Cu, 30W/30µm, point focus. ( DIN EN 12543-5) Patented 2D single reflection multilayer optics.
Detector	Dectris Pilatus 3 hybrid photon counting detectors. Two fixed detectors for continuously and simultaneously. SAXS and WAXS acquisition up to 2θ=60°.
Beam Path	Windowless beam path entirely under vacuum from beam delivery system to detector sensor
Key features	Clean Beam technology: high flux and low background beamline. Beamstopless measurement: SAXS acquisition continuously without any beamstop. Virtual detector mode: > 200° azimuth coverage with rotation of sample.
Measurement capability	Nanoparticles size up to 250 nm in diameter.
Sample environment	Standard holders: solids, capillaries, powders. Sample holders for powders and gels. Flow cells for liquids: --- Low noise flow cell --- Capillary flow cell Automatic Sample Changer Temperature stages: --- Multi-purpose X-Ray Temperature Stage (-20°C to 150°C) --- High temperature sample stage (-150°C to 350°C) --- Extended high temperature sample stage (amb - 700°C) Tensile Stage (0-200N). GiSAXS stage compatible with high temperature sample stage. Custom stages on request.
Software	Acquisition software with automatic data reduction in absolute units and live data display. XSACT (X-ray Scattering Analysis and Calculation Tool) for data analysis and interpretation.
General parameters	Fooprint: < 1x1 m². Weight: ~ 520 kg. Maximum power consumption: < 2000 W (single phase power). Self-contained: no external fluids required.
Warranty	Two years warranty and three years on X ray source.


Element of interest	Reference
O, F, Na, Mg, Al, Si, P, S	XAN-1
Nitrogen	XAN-2
Carbon	XAN-3
Boron	XAN-4
Mg, Al , Si	XAN-5
Be	XAN-6

Xeuss Pro

Webinar

Our team

Serving our customers worldwide

Your access to the nanoscale

Polymer research

Food science

Nanoparticles & colloids

Consumer care

Renewable energy

More applications

Visit our blog on SAXS for drug development

News

Customer testimonials

Some of our customers

At Xenocs, we help our customers in their research, development and production of advanced materials by providing them with products and services for characterization at the nanoscale. Our solutions are based on Small and Wide Angle X-ray Scattering (SAXS/WAXS).

For more information on the SAXS/WAXS technique, have a look at our SAXS webpage.

The characterization pages will give you some examples of the types of measurements you can perform in the lab with X-ray scattering.

For detailed descriptions on our portfolio of SAXS/WAXS instrumentation, please refer to our product webpages.

The knowledge base menu gives you access to some application notes and a large list of customer publications involving our lab instruments.

Choose where to start your journey:

What is SAXS

Applications

Products

Characterization

If you have any questions on what is possible to do with SAXS and on our solutions, do not hesitate to contact us at [email protected].

SAXS WAXS

SAXS WAXS – Xenocs, Your Access To The Nanoscale In The Lab

Useful links

X-ray Optics

Xenocs proposes a wide range of optics for both XRD and XRF applications.

2D-3D Beam shaping X-ray Optics

High Flux Optics

Small Spot Optics

Collimating Optics

1D Beam shaping X-ray Optics

High Flux Optics

Collimating Optics

X-ray beam delivery system

The combination of an innovative design and the FOX3D single reflection optics makes the GeniX3D a unique solution on the market.

High flux solutions

Small spot solutions

X-ray beam accessories

In addition to our high quality optical components and beam delivery systems, we propose accessories to optimize the performance of your setup.

Xeuss 3.0 specifications

Plenty of space for sample environment

With its large chamber and concept ensuring stationary sample during measurement, the Xeuss 3.0 is the perfect X-ray scattering platform instrument for now and the future.

Ultimate performance

The Xeuss 3.0 offers a maximum flexibility of measurement configurations to get the best possible data quality on any type of sample.

Xeuss 3.0 shown with Q-Xoom transparency to illustrate the moving detector.

Maximum flexibility

Provide structural tools to a large community of users with full remote operation capability and access to a unique range of length-scales.

Q-Xoom – enjoy the flexibility of full-range computer-controlled detector travel

Measure probe lengths as large as 4.5 microns together with nanoscale information

Optimize your experiment to any type of sample (absorption, fluorescence, characteristic dimensions)

Simultaneously from atomic to nanoscale

No need to repeat SAXS and WAXS measurement, you get two measurements within one exposure.

Extensive and powerful suite of data analysis algorithms

XSACT includes an extensive array of analysis modules for sample characterization of size, structure and texture of multiple types of materials including nanoparticles and polymers.

Low cost of ownership

Get nanoscale information on a day to day basis to improve your material process or validate your research models.

Accurate and high dynamic range measurement

Focus your attention on science and data interpretation, you can rely on your data.

Publication quality figure presentation

XSACT is a time saver as it bundles all the tools to create publication-ready figures without the need for another visualization software.

High quality SAXS data in the lab

Measurements previously only possible at synchrotron facilities can now be done in the lab.

High throughput measurements and results

Full automation from sample to final results on up to 192 samples.

In-line SEC and UV-Vis combined with SAXS – also in the lab!

Obtain the structure of small and large protein species through in-line gel filtration

BioXolver specifications

*Theoretical limit assuming globular proteins
